                        Description :

                        ◆Compact and lightweight embedded design support for Intel Baytrail-D / I / M series processors;
◆DDR3 SODIMM 204 Socket Ram socket max support 8gb Ram
◆Onboard 32/64/128G EMMMC chipset (Optional)
◆Mini-PCIE socket,support wifi Module,combine with SIM card slot ,support 3G Module(only support USB singal equipment)
◆I/O rich Port,Including 2*USB Port/4*Intel I211 lan Card,1*HDMI,1*VGA display connector 1*RJ45   RS232 Port
◆The fanless design, no noise design, stable and efficient
◆12V DC Power supply




                                        |

 Mini PC  |

				 Model Name  |

				 N-BOX-J2  |

|

  |

				 Color  |

				 Color  |

|

  |

				 size  |

				 134*126*45.3 mm  |

|

  |

				 material  |

				 6063  |

|
				 Motherboard
  |

				 Chipset  |

				 Baytrail-I/D/M serial processor chipset  |

|

  |

				 CPU  |

				 Support Baytrail-I/D/M serial CPU (J1900 J1800)  |

|

  |

				 Ram  |

				 Single channel DDR3 1066/1333/1600MHz,max support 8G  |

|

  |

				 Graphics card  |

				 Intel HD Graphics  |

|

  |

				 Expansion  |

				 1*MINI-PCIE interface for loading wifi, 3G/4G modules (USB signal devices only)  |

|

  |


  |

				 1*MINI-SATA interface for loading SSD solid state drives  |

|

  |


  |

				 1* onboard EMMC 32/64/128G (optional)  |

|
				 Storage  |

				 HDD  |

				 2.5inch laptop hard disk  |

|

  |

				 SSD  |

				 SSD  |

|

  |

				 EMMC  |

				 32/64/128G(optional )  |

|
				 Function  |

				 Display output  |

				 HDMI  |

|

  |

				 Internet Output  |

				 4*Intel I211 Lan Port  |

|

  |

				 USB  |

				 1*USB2.0、1*USB3.0  |

|

  |

				 Front I / O interface  |

				 1* power switch (with indicator light), 1* reset button, 1*HDMI, 1*RJ45 interface RS232, 2*USB  |

|

  |

				 Rear I / O connector  |

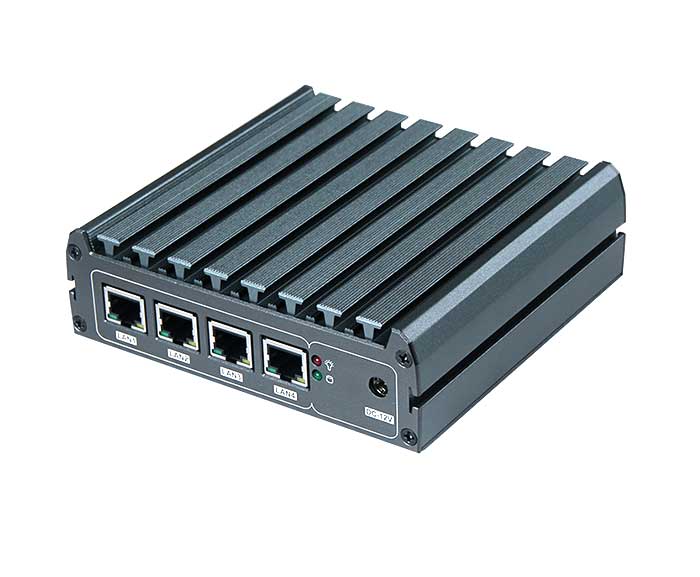

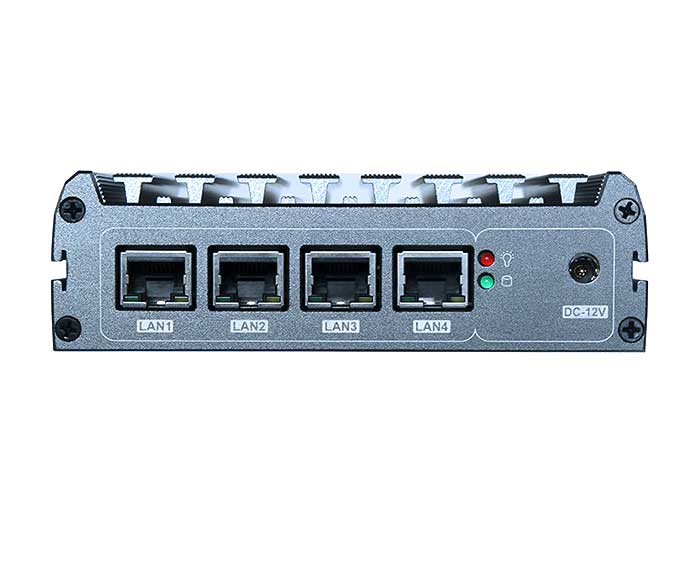

				 4*Intel I211 high-performance Gigabit LAN, 1* power indicator, 1* hard disk indicator, 1*DC power supply interface  |

|

  |

				 Working temperature  |

				 -10~60℃  |

|

  |

				 Operating system  |

				 Windows7、Windows 8、Windows8.1 Windows10、linux  |

|

  |

				 Power supply  |

				 DC12-19V power supply  |
