Processor

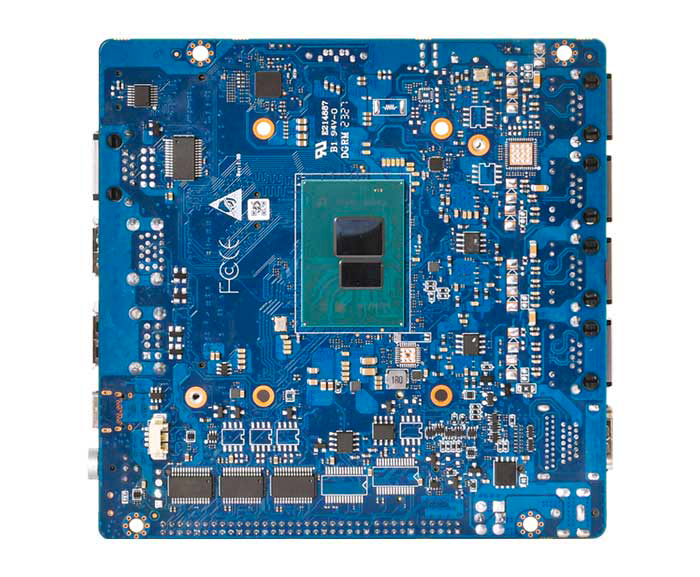

Onboard Intel Alder Lake-N serial processor,TDP 15W

EFI BIOS

Ram

1*DDR5 SO-DIMM，Max 16GB

Rom

1*M.2 M-Key 2280(NVMe PCIe 4.0 x2/SATA3.0 protocol)

1*SATA3.0 slot，2Pin 5V power

Display port

1*HDMI2.0,support 4096x2160@60Hz

1*DP,support 7680x4320@60Hz

Type-C,support DP 7680x4320@60Hz and USB3.2 Gen2

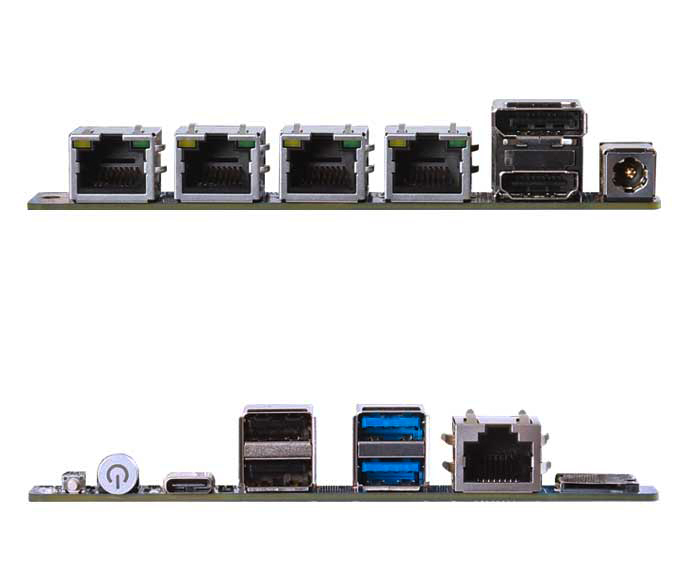

I/O interface

Power button,reset button,2*USB3.0,2*USB2.0,TF card slot

DC JACK,HDMI+DP,Type-C

4*2.5G LAN（3*Intel 226-V,1*RTL8156B，choose POE or not）,RJ45 console

Extended Interface/Function

External TPM2.0 is optional, but not by default. The default is CPU built-in TPM2.0

1*MiniPCIe（PCIe+USB2.0+SATA3.0 protocol，WIFI/BT/mSATA module）,Micro SIM slot

5*RS232 header，pitch 2.0mm；4*GPIO

1*4Pin PWM CPU FAN

Power

DC 12-19V，over 36W

working environment

Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90%

operating system support

Windows10，Windows11，Linux

Size

120x120 mm

net weight

About 120g without radiator, about 220g with radiator
