Processor system

Onboard Intel Alder Lake-N series processor, TDP 15W

EFI BIOS

Memory

1 x DDR5 SO-DIMM, total maximum 16GB

Storage

1 x M.2 M-Key 2280 (SATA3.0 protocol)

1 x SATA3.0, 2Pin 5V power supply

Display

1 x HDMI2.0, support 4K@60Hz

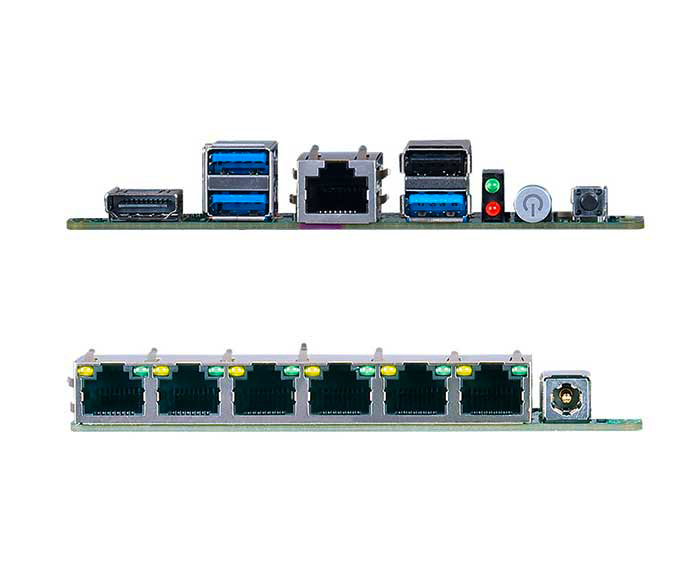

Board edge I/O interface

Power button, reset button, 3 x USB3.0, 1 x USB2.0

DC JACK, 1 x HDMI, 1 x Console

6 x Intel i226-V (4 x Intel i226-V optional; POE optional for LAN1/2/3/4, POE has a pop-up switch)

Expansion interface/function

External TPM2.0 optional, not available by default. The default is CPU built-in TPM2.0

1 x M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module; no PCIe protocol when using 4LAN)

1 x M.2 B -Key (USB3.0+USB2.0 protocol, 4G/5G module)

2 x RS232 pin headers, pitch 2.0mm; 8-bit GPIO, 2x5Pin, pitch 2.0mm

1 x USB2.0 pin header, 2x5Pin, pitch 2.0mm; F _Panel

1 x 4Pin PWM CPU FAN, 1 x 4Pin PWM SYS FAN

Power supply

DC 12-19V, 60W or above

Work environment

Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%

Operating system

Windows 10, Windows 11, Linux

Size

120 x 120 mm

Net weight

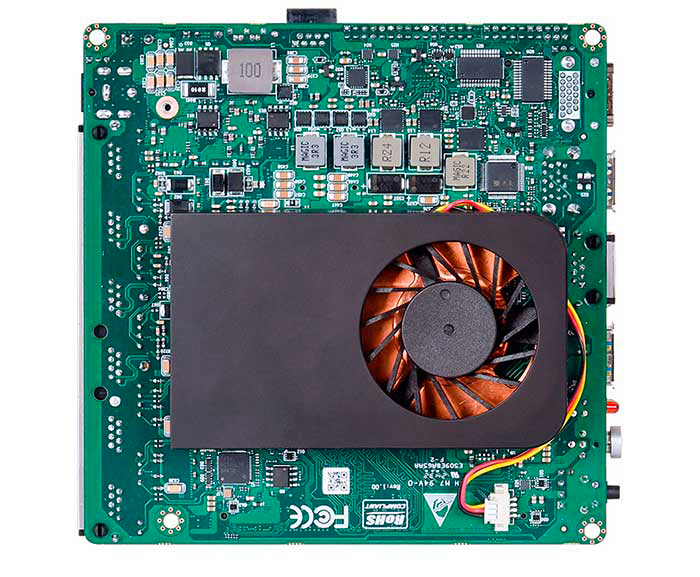

Without radiator, about 130g; with radiator, about 250g
