Model

4U industrial computer（H81-BTC）

size

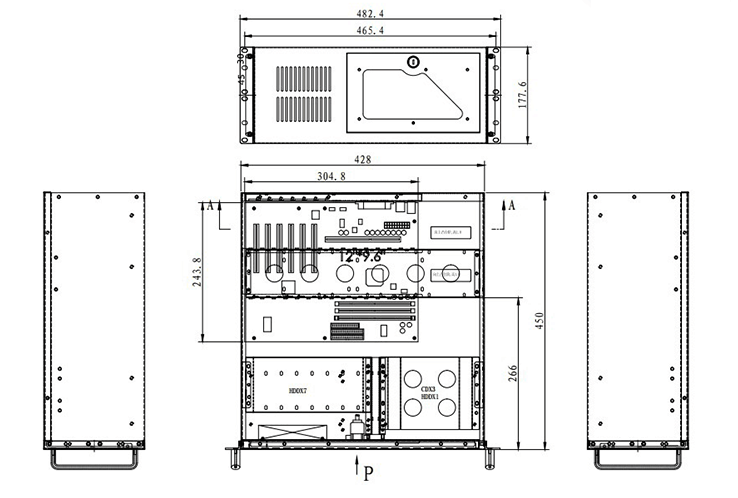

482*450*178mm

material

Advanced flowerless galvanized sheet

CPU

Support LGA1150 socket 4^th?i3-i5-i7/Pentium/Celeron CPU；

Chipset

H81 high-speed chipset

Operate system

Windows7 Windows8.1 Windows10 Linux

Ram socket

2*DDR3 Ram socket ，support DDR3L?1600Mhz?dualchanel

Lan

Onboard 1*RTL 8111H gigabit Lan

Audio

Onboard ?HDA ALC662

Standard Fan

1*?12025 fan, optional 2 *6025 fans

Expansion slot

The chassis supports 7 *full-height PCIE expansion slots

driver

The chassis supports 3*?5.25 optical drives

Hard disk

The chassis supports 8* 3.5-inch hard drive holes

Storage equipment

2*SATA3.0，2*SATA2.0

Color

Black

Panel interface

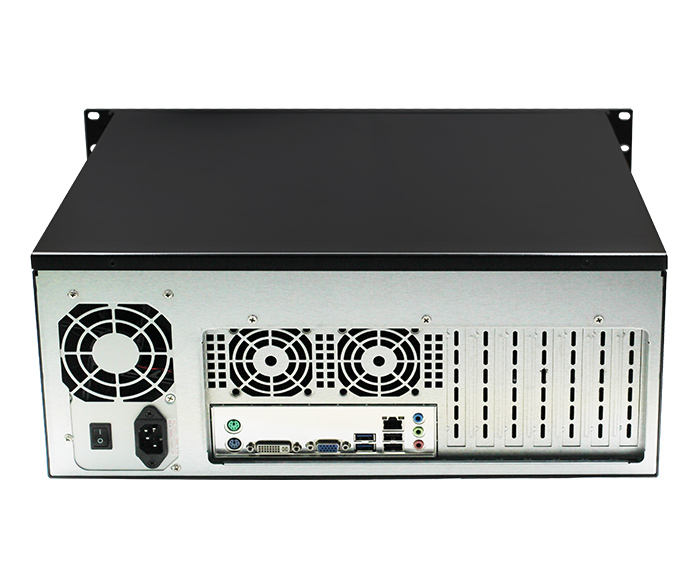

1*VGA 1*DVI 1*LAN,2*USB3.0?2*USB2.0 1*MIC_OUT/LINE_OUT/LINE_IN 1*PS/2

Power supply

Desktop ATX Power supply

Net weight

10KG

Gross weight

12.0KG

Motherboard

description

CPU?optional

H81-BTC

Main chipset：Intel H81 high-speed chipset

CPU?socket：LGA 1150

Ram type：2*DDR3 Ram socket

CPU?Model：

Intel?4^th?i3-i5-i7/Pentium/Celeron?CPU
